DPA 4099-DC-1-101-CM
€595.00
Prices incl. VAT plus shipping costs
(Free shipping from 49,-€ order value within Germany)
Delivery on request
Directional pattern: Supercardioid
Operating principle: Pressure gradient
Cartridge type: Pre-polarised capacitor
Frequency range: 20Hz - 20kHz
80Hz - 15kHz with 2dB soft boost at 10-12kHz (+/-2dB at 20cm)
Sensitivity: 6mV/Pa; -44dB re. 1 V/Pa (nominal, +/-3dB at 1kHz)
Equivalent noise level: Typ. 23dB(A) with respect to 20µPa (max. 26dB(A))
S/N ratio: Typ. 71dB(A) (referenced to 1kHz at 1 Pa (94dB SPL))
Dynamic range: Typ. 108dB
Maximum sound pressure level: 142dB, peak before clipping
Output impedance: From MicroDot: 30 - 40 Ohm, From DAD4099 / DAD6001-BC: 100 Ohm
Cable drive capability: Up to 300m (984ft) with a DAD4099 or DAD6001-BC XLR adapter
Output balance principle: Signal balanced with XLR adapter DAD4099 or DAD6001-BC
Common mode rejection ratio: >60dB from 50Hz to 15kHz with XLR adapter DAD4099 or DAD6001-BC
Power supply: Min. 5V to max. 50V (via DPA adapter for wireless systems)
Current consumption: Typ. 1.5mA (microphone) (3.5mA with XLR adapter DAD4099 or DAD6001-BC)
Connector: MicroDot
Colour: black
Weight: 27g / 0.95oz
Microphone diameter: 5.4mm / 0.21''
Microphone length: 45mm / 1.8''
Cable diameter: 1.6 mm (0.06'') / 2.2 mm (0.09'')
Cable length: 1.8m / 5.9ft
Polarity: +V on MicroDot pin for positive sound pressure (and pin 2 on XLR adapter DAD4099 or DAD6001-BC)
Gooseneck length: 140mm / 5.5''
The d:vote™ series is already the recognised benchmark for this type of microphone. The CORE version delivers even better sound quality and distances itself even more clearly from competitor products. The d:vote™ CORE 4099 delivers even more clarity and detail across the entire dynamic range. CORE technology is the logical choice for musicians, live sound engineers and anyone else who doesn't want to compromise on sound quality.
CORE by DPA is the powerful new technology that underpins DPA miniature microphones. We have minimised distortion. As a result, the microphones offer a clearer and more open sound from pianissimo to forte. Find out more about CORE by DPA.

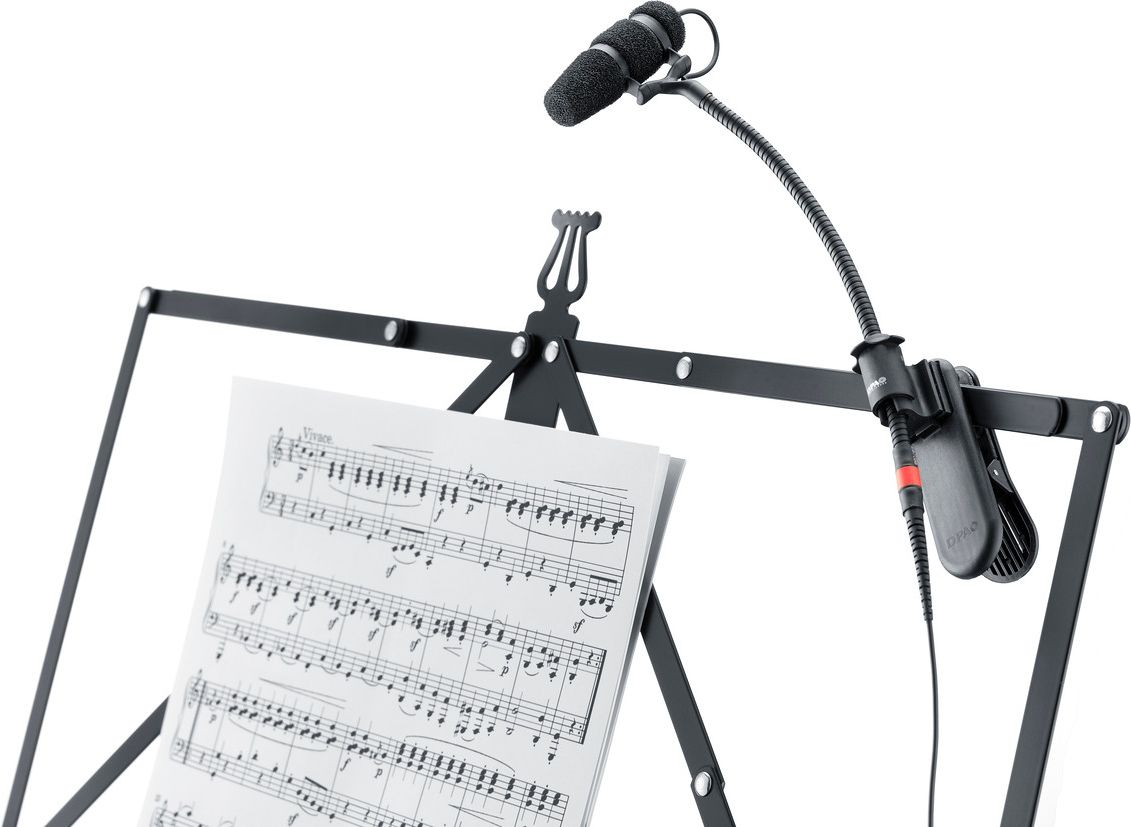

Whether piano, guitar, strings or wind instruments - d:vote™ microphones deliver outstanding sound for all instrument types. This one microphone model can amplify an entire orchestra beautifully. With the matching holder, you can mount the microphone on another instrument. The award-winning d:vote™ series offers a far more natural sound than other clip-on microphones or pickups. This condenser microphone suppresses unwanted noise and accurately captures the true tone of your acoustic instrument.
Properties
| Characteristic: | Supercardioid |
|---|---|
| Incl. Clamp: | Yes |
| Low cut: | No |
| Pad: | No |
| Stereo pair: | No |
| Type of construction: | Capacitor |
